Blue Circular Dot Laser Module

Product Overview

The Blue Circular Dot Laser Module with TTL Modulation, 450nm, Class 1, 10~36VDC, 0~1 meter working distance, VLM-450-71 LPO - Industrial Alignment Laser for Medical, Laboratory, Machine Vision bridges value-driven design and reliable performance, well-suited for daily routines. Key specs include brand: Quarton, style: VLM-450-71 LPO - Blue laser, Class 1, with TTL, unit count: 1.0 Count. Notable features include vlm-450-71 lpo and lpo produces, contributing to its user-tested character.

Key Features

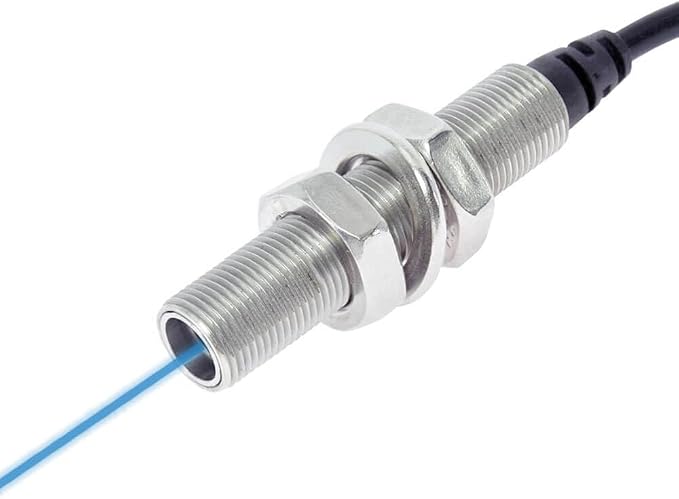

• VLM-450-71 LPO produces an extremely small circular blue laser dot with TTL modulation function, ideal for precision alignment within 1 meter. Provides a precision laser spot for applications such as tool path indication, component positioning verification, optical sensing alignment, calibration reference in inspection systems.

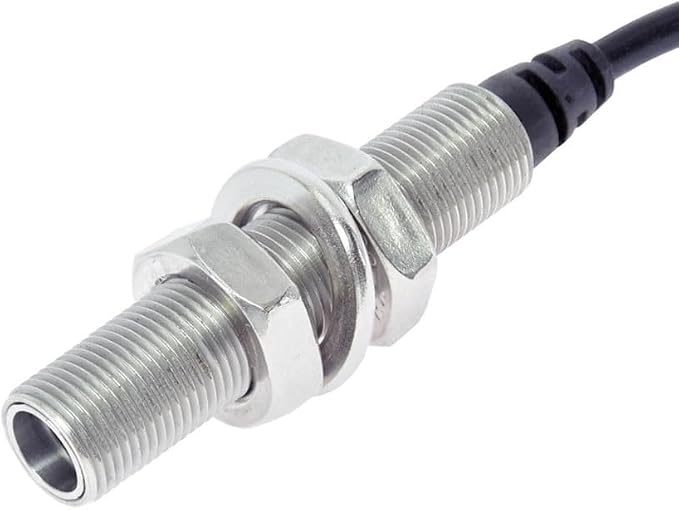

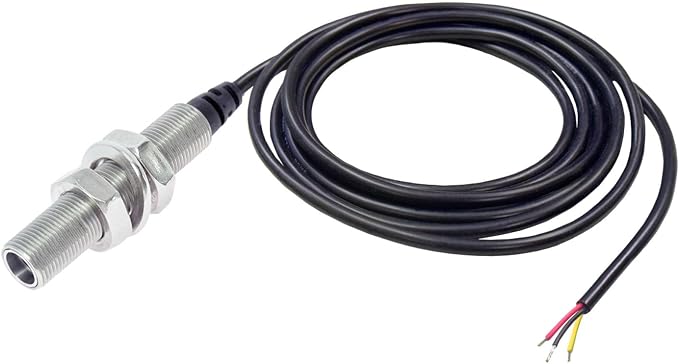

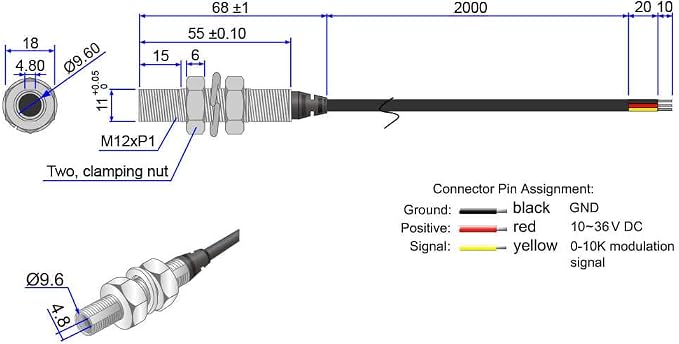

• Constructed with a stainless steel housing (M12 × 68 mm) and a high-quality aspherical glass lens, ensuring stable beam profile, optical clarity, and long-term reliability in continuous-use industrial environments.
• Class 1 laser output (less than 0.39 mW) ensures eye-safe operation under normal conditions. Operating voltage: 10~36 VDC. Beam divergence <0.4 mRad provides a concentrated dot with consistent spot size within 1 meter. Since the laser dot is very small and focused within 1 meter, it will appear very bright - similar to a Class 2 laser - even though it is classified as Class 1.
• Engineered for long-term reliability, the 450 nm module is tested for vibration resistance (10~55 Hz, 1.5 mm amplitude) and built with an insulated housing to ensure electrical safety. It operates consistently from -20°C to +60°C, making it ideal for demanding environments such as manufacturing automation, inspection stations, CNC systems and industrial tooling applications.
• Notice: Our laser modules are NOT laser pens and are NOT intended for general commercial or consumer use like standard laser pointer. They feature NO built-in switch or battery compartment and must be operated with an external power supply or battery holder.

Why Choose the Quarton Blue Circular Dot Laser Module with TTL Modulation

Choose the Blue Circular Dot Laser Module with TTL Modulation, 450nm, Class 1, 10~36VDC, 0~1 meter working distance, VLM-450-71 LPO - Industrial Alignment Laser for Medical, Laboratory, Machine Vision for its quality approach to diode lasers essentials: vlm-450-71 lpo delivers thoughtful design in daily use.

Best For

The Quarton Blue Circular Dot Laser Module with TTL Modulation is best suited for: precision alignment within 1 meter, demanding environments such as manufacturing automation.

Quick Summary

The Quarton Blue Circular Dot Laser Module with TTL Modulation is a Diode Lasers product by Quarton. Brand: Quarton. Style: VLM-450-71 LPO - Blue laser, Class 1, with TTL. Unit Count: 1.0 Count. Price: $277.2.

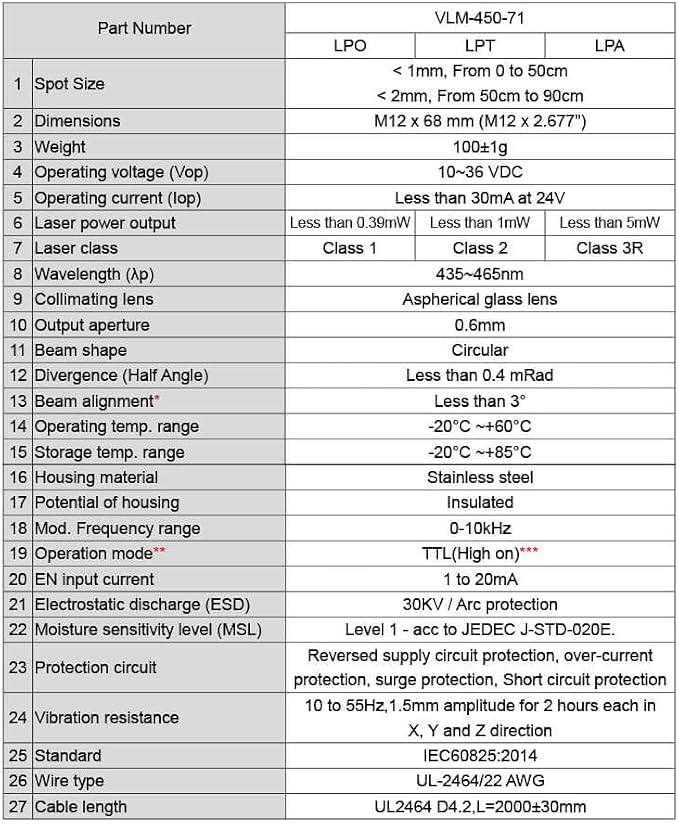

Product Specifications
