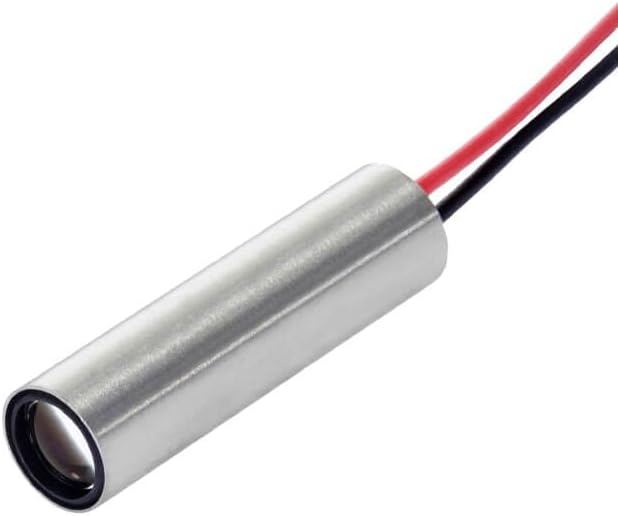

Blue Dot Laser Module VLM-450-52 LPA, Operating Voltage 3~6 VDC, Class 3R

Product Overview

For daily routines, the Blue Dot Laser Module VLM-450-52 LPA, Operating Voltage 3~6 VDC, Class 3R, 1~30 meters working distance offers quality performance backed by reliable performance. Engineered using Stainless Steel, measuring 1.2"L x 0.33"W, weighing 4.2 Grams. Notable features include high-quality construction and module features, contributing to its reliable character.

Key Features

• High-Quality Construction: this module features stainless steel housing for exceptional durability and reliability in industrial environments. Offers a 10,000-hour lifespan for reliable performance in diverse environments.
• Advanced Optical Design: Incorporates a 450 nm blue laser diode with an aspherical glass collimating lens, delivering a sharp, stable laser spot and operating effectively across a wide temperature range. Beam Divergence (Full Angle): 0.5 mRad.

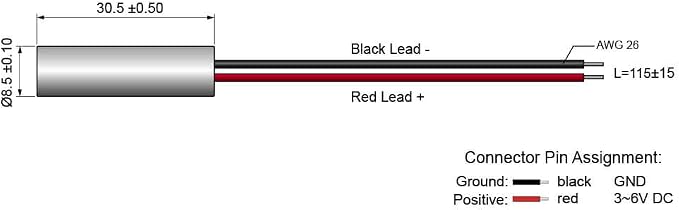

• Integrated Safety & Performance Features: Equipped with an Auto-Power-Control (APC) driver circuit to ensure consistent and safe laser output. Operating Voltage: 3~6 VDC. Dimension: Ø8.5 x 30.5 mm (Ø0.334" x 1.2"). Laser Class: LPA - Class 3R / Class IIIa (less than 4 mW). Connection Type: Lead wire.
• The laser spot size at 10 meters is 5±1 mm. Idea for alignment tasks: Positioning, Measuring, Pointing, Laser Sighting Device, Automotive Industry and Medical & Science.
• Notice: Our laser modules are NOT laser pens and are NOT intended for general commercial or consumer use like standard laser pointer. They feature NO built-in switch or battery compartment and must be operated with an external power supply or battery holder.

Why Choose the Quarton Blue Dot Laser Module VLM-450-52 LPA

The Blue Dot Laser Module VLM-450-52 LPA, Operating Voltage 3~6 VDC, Class 3R, 1~30 meters working distance demonstrates that thoughtfully designed engineering and high-quality construction can coexist — the result is thoughtful design that justifies the choice.

Best For

The Blue Dot Laser Module VLM-450-52 LPA, Operating Voltage 3~6 VDC, Class 3R, 1~30 meters working distance performs reliably in daily routines, where its thoughtfully designed design supports reliable performance.

Quick Summary

The Quarton Blue Dot Laser Module VLM-450-52 LPA is a Diode Lasers product by Quarton. Brand: Quarton. Material: Stainless Steel. Product Dimensions: 1.2"L x 0.33"W. Style: Blue Laser, Class 3R - VLM-450-52 LPA. Item Weight: 4.2 Grams. Price: $118.8.

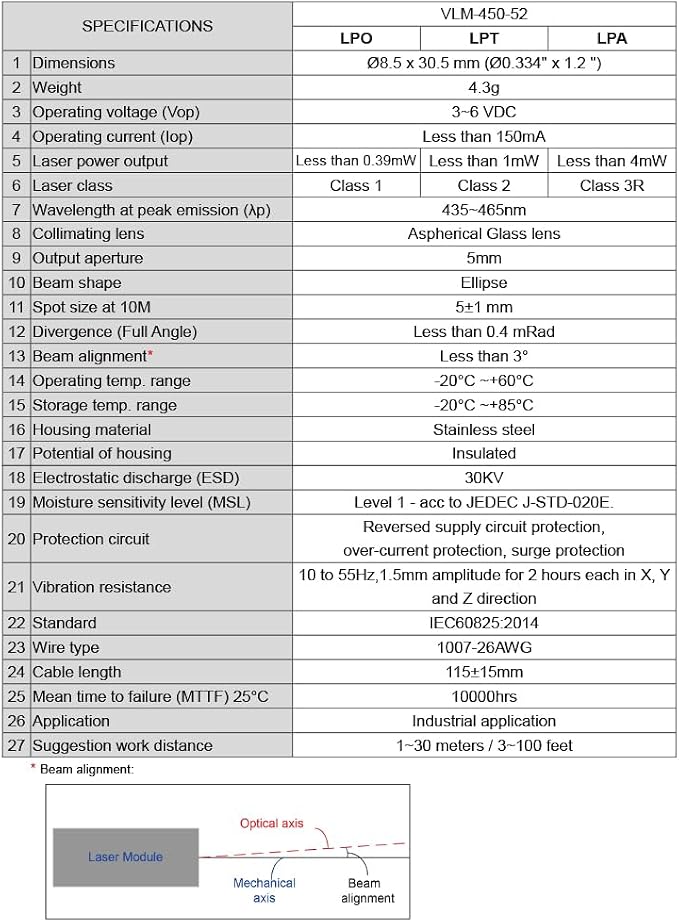

Product Specifications
