Product Overview

Built with durable attention to detail, the Green Line Laser Module 520 nm, Class 1, 3~6 VDC, >90° Fan Angle Focused at 10 m, 1~20 meters working distance, VLM-520-55 LPT, Industrial Alignment for Automation & Machine Vision – Made in Taiwan provides long-term value for gift giving. Crafted from Aluminum, measuring 1.5"L x 0.39"W, available in Black. Notable features include direct green and green line, contributing to its thoughtfully designed character.

Key Features

  • Direct Green Line Laser: High-quality straight green line laser module (520nm) using direct diode, not DPSS. Provides stable, bright, and precise green line projection for industrial alignment and measurement.
  • Non-DPSS Stable Operation: Operates reliably from –4°F to 140°F (–20°C to +60°C). The direct green diode design offers faster startup, lower power loss, and consistent performance across environments.

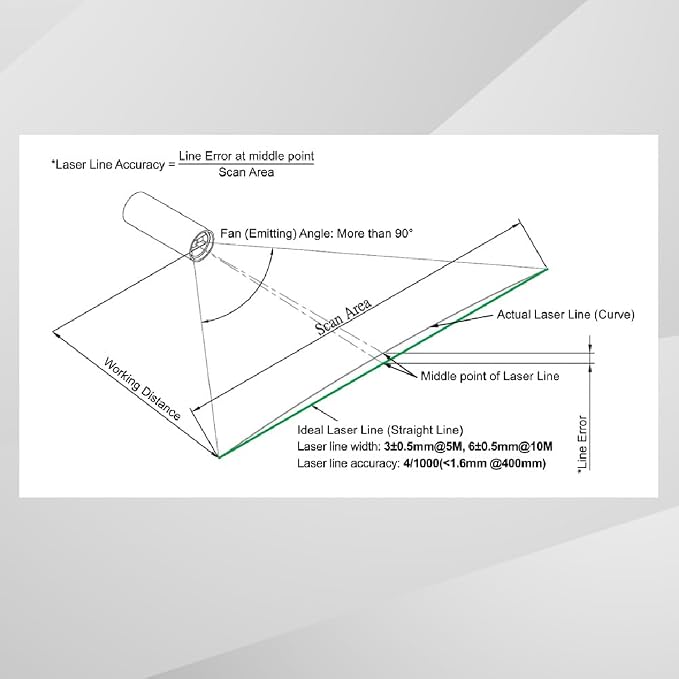

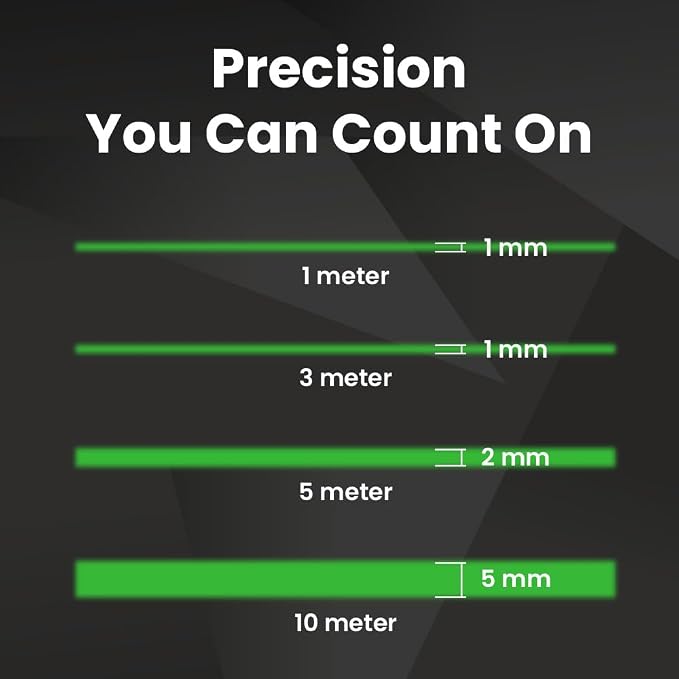

  • Optical Precision: Laser power output class 1, eye safe (was class 2, changed due to Latest IEC 60825-1). Laser beam is focused at 10m for optimal line clarity between 3~20m. Line width: 3±0.5mm @5m, 6±0.5mm @10m. Fan angle >90° for wide coverage and uniform brightness. Optical power output: 9~10mW
  • Durable Industrial Design: Compact housing (Ø10×38mm) with sturdy construction. Operates on 3~6VDC with built-in APC driver circuit to maintain constant output power and ensure safe, stable performance.
  • Long Lifespan & Made in Taiwan: Mean Time To Failure (MTTF) of 10,000 hours at 25°C. Designed and manufactured in Taiwan to ensure reliability, precision, and long-term durability for professional use
  • Wide Industrial Applications: Ideal for alignment and positioning in industrial environments, including wood processing, metal fabrication, textile production, food industry, stone cutting, automation systems, and medical or optical equipment calibration. Provides precise, reliable laser guidance from 1~20 m working distance.

Why Choose the Quarton Green Line Laser Module 520 nm

The Green Line Laser Module 520 nm, Class 1, 3~6 VDC, >90° Fan Angle Focused at 10 m, 1~20 meters working distance, VLM-520-55 LPT, Industrial Alignment for Automation & Machine Vision – Made in Taiwan brings well-made and value-driven qualities together, supported by direct green. The outcome is reliable performance that addresses real diode lasers needs.

Best For

The Quarton Green Line Laser Module 520 nm is best suited for: alignment and positioning in industrial environments.

Quick Summary

The Quarton Green Line Laser Module 520 nm is a Diode Lasers product by Quarton. Brand: Quarton. Material: Aluminum. Color: Black. Product Dimensions: 1.5"L x 0.39"W. Style: Green line laser - VLM-520-55 LPT. Price: $140.23.

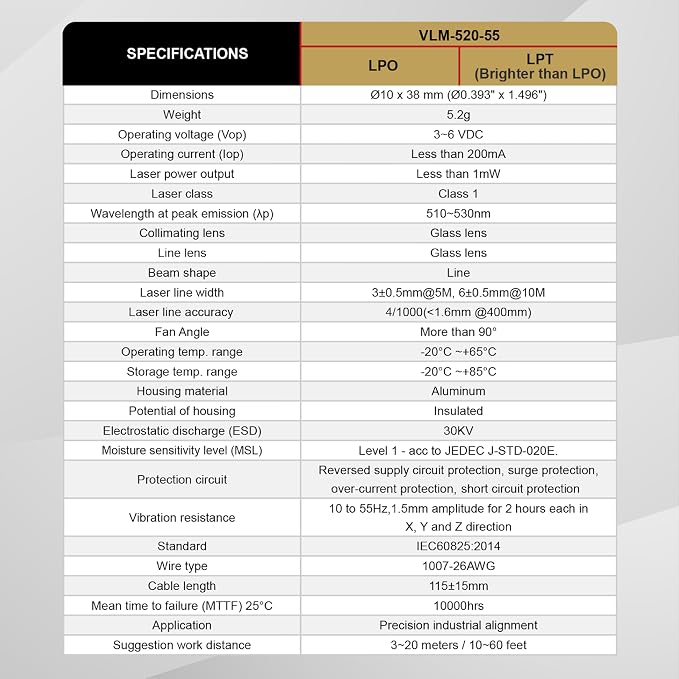

Product Specifications

Specification Details
Brand Quarton
Material Aluminum
Color Black
Product Dimensions 1.5"L x 0.39"W
Style Green line laser - VLM-520-55 LPT
