Product Overview
The Green Line Laser Module, 520nm, 7~10VDC, Class 1, Fan Angle >120°, 1~20 meters work distance, VLM-520-37 LPA, Professional Use Applications achieves everyday convenience through versatile engineering, making it dependable for practical situations. Built with Aluminum, Glass, measuring 1.02"L x 0.55"W, available in Green. Notable features include professional green and green straight, contributing to its value-driven character.
Key Features

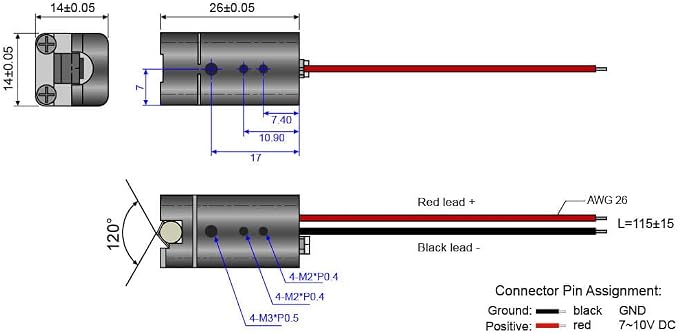

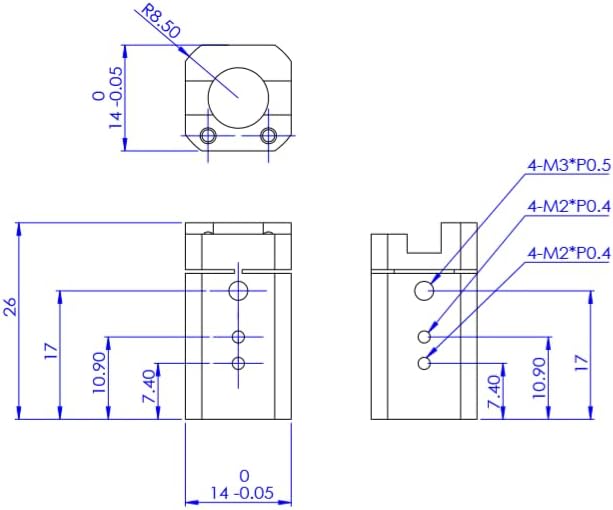

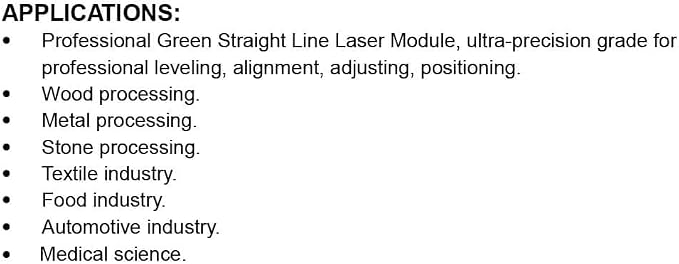

- Professional Green Straight Line Laser Module, ultra-precision grade for professional leveling, alignment, adjusting, positioning. Laser line accuracy: 20" (+/- 1mm @10m). Emitting angle:> 120°. Operating Voltage: 7~10 VDC operation. Dimensions: (W)14 x (H)14 x (L)26 mm ( D0.551 x 1.023 inches).
- Wave length: 520 nm. Laser power output: Class I. (Update 02/26/2024 - The laser output (the brightness) is exactly the same as before. The reason why the Laser Class is changed because according to the latest IEC 60825-1 regulations. Therefore, you see that its Class is changed from "Class II" to "Class I" now, even though the brightness is exactly the same as before.)
- Direct Green Laser Diode for large temperature operation range.The supreme line-accuracy and the widest emitting angle line Laser module for use with Professional applications. Versatile mechanical structure on 4 sides, easy to fixed. Please notice: laser modules are not supposed to be sold with any power source, power supply, base for plugging, or wiring terminals. Because modules are simply components, and it means that you have to wire it to your own power source by yourself.
- Laser beam is focused at 10 meters to generate best thin laser line from 5 meters to 20 meters.This module has integrated quartz cylindrical lens, collimating lens, laser diode, and APC driver circuit. APC driver circuit enables the Laser output power safe and constant.
- Notice: Our laser modules are NOT laser pens and are NOT intended for general commercial or consumer use like standard laser pointer. They feature NO built-in switch or battery compartment and must be operated with an external power supply or battery holder.
Why Choose the Quarton Green Line Laser Module
The Green Line Laser Module, 520nm, 7~10VDC, Class 1, Fan Angle >120°, 1~20 meters work distance, VLM-520-37 LPA, Professional Use Applications combines professional green with time-tested build quality, giving users satisfying experience they can rely on across line lasers situations.
Best For
The Green Line Laser Module, 520nm, 7~10VDC, Class 1, Fan Angle >120°, 1~20 meters work distance, VLM-520-37 LPA, Professional Use Applications fits practical situations scenarios well, providing everyday convenience and time-tested reliability.
Quick Summary
The Quarton Green Line Laser Module is a Line Lasers product by Quarton. Brand: Quarton. Material: Aluminum, Glass. Color: Green. Product Dimensions: 1.02"L x 0.55"W. Style: VLM-520-37 LPA - Green line laser, Class 1 (brighter than LPT). Price: $174.82.

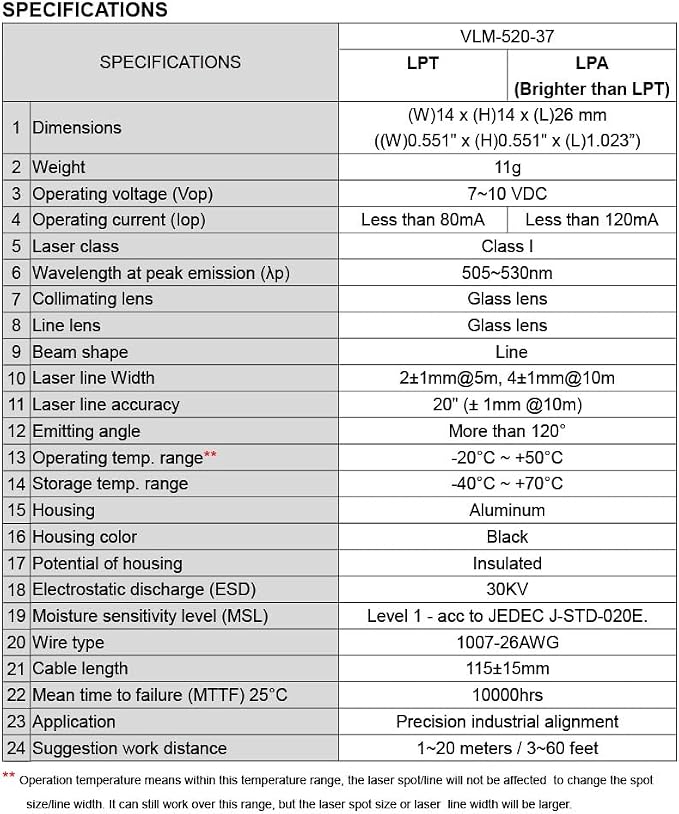

Product Specifications
| Specification | Details |
|---|---|
| Brand | Quarton |
| Material | Aluminum, Glass |
| Color | Green |
| Product Dimensions | 1.02"L x 0.55"W |
| Style | VLM-520-37 LPA - Green line laser, Class 1 (brighter than LPT) |
