Product Overview

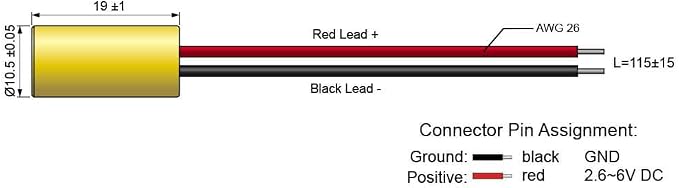

The IR Dot Laser Module, 940nm, Class 1 eye-safe, Less Than 1.1mW, VLM-940-01 LPO – With APC Driver, D10.5 x L19 mm, 2.6~6 VDC Operation Voltage, 30m working distance, Laser Head, Made in Taiwan brings clarity to household use with reliable build choices and practical use. Made with Metal, measuring 0.72"L x 0.41"W, available in Gold. Notable features include vlm-940-01 lpo and lpo projects, contributing to its practical character.

Key Features

  • VLM-940-01 LPO projects a precise laser spot at a Deep Near-Infrared (NIR) 940 nm Wavelength, delivering a beam that is completely invisible to the human eye. Ideal for covert illumination and applications requiring enhanced stealth, such as Security and Surveillance.

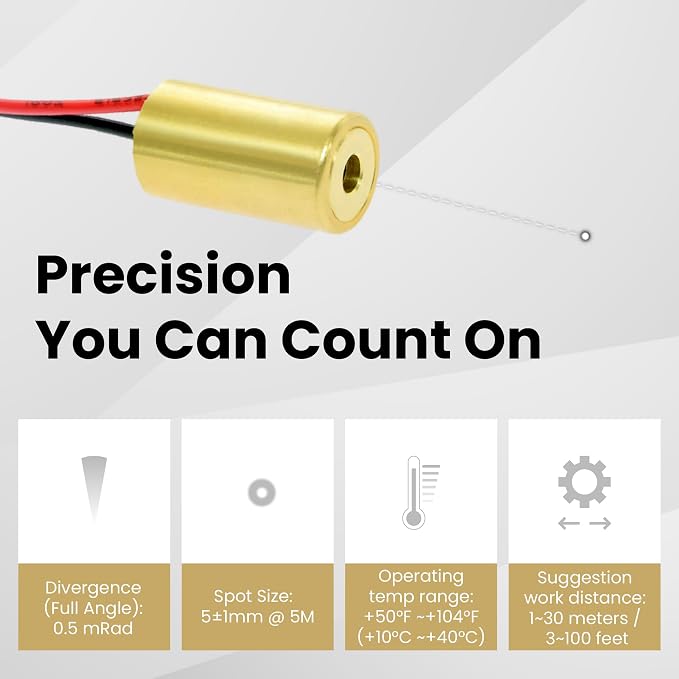

  • Built with an Aspherical plastic collimating lens to maintain consistent spot quality across the working range. Rated for a high Mean Time To Failure (MTTF) of 10,000 hours at 25°C, ensuring sustained performance in automation environments.

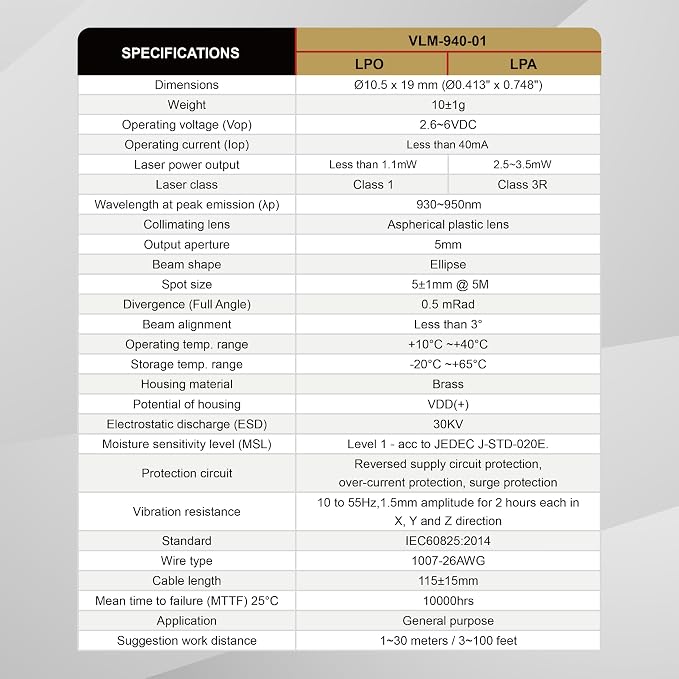

  • Wavelength: 930~950 nm (Deep NIR); Laser Output: Less than 1.1 mW (Class 1 eye-safe); Operating Voltage: 2.6~6 VDC. The Class 1 safety rating allows for safe integration into a wide range of consumer electronics and industrial systems.
  • Features a rugged solid brass housing for excellent durability and thermal management. The integrated Auto-Power-Control (APC) driver circuit and internal protection allow for safe, consistent operation in demanding industrial settings
  • Designed and manufactured in Taiwan by Quarton, this module supports specialized applications requiring reliable Deep NIR light, including high-precision Gesture Recognition Systems, Eye-Safe Applications, Biometric Systems such as Facial Recognition, and IR Communication for Consumer Electronics.

Why Choose the Quarton IR Dot Laser Module

The IR Dot Laser Module, 940nm, Class 1 eye-safe, Less Than 1.1mW, VLM-940-01 LPO – With APC Driver, D10.5 x L19 mm, 2.6~6 VDC Operation Voltage, 30m working distance, Laser Head, Made in Taiwan brings together versatile and well-made qualities, plus vlm-940-01 lpo, to deliver everyday convenience in diode lasers settings.

Best For

The Quarton IR Dot Laser Module is best suited for: covert illumination and applications requiring enhanced stealth.

Quick Summary

The Quarton IR Dot Laser Module is a Diode Lasers product by Quarton. Brand: Quarton. Material: Metal. Color: Gold. Product Dimensions: 0.72"L x 0.41"W. Style: VLM-940-01 LPO - IR laser dot 940nm, Class 1. Price: $116.99.

Product Specifications

Specification Details
Brand Quarton
Material Metal
Color Gold
Product Dimensions 0.72"L x 0.41"W
Style VLM-940-01 LPO - IR laser dot 940nm, Class 1
