Product Overview

The IR Dot Laser Module, 850nm, Class 3R, 2.5–3.5mW, VLM-850-01 LPA – With APC Driver, D10.5 x L18.4 mm, 2.6–6 VDC Operation Voltage, for <30m working distance, Laser Head, Made in Taiwan stands out with its quality character and satisfying experience, ideal for common scenarios. measuring 0.72"L x 0.41"W. Notable features include vlm-850-01 lpa and lpa projects, contributing to its reliable character.

Key Features

  • VLM-850-01 LPA projects a precise laser spot at a Near-Infrared (NIR) 850 nm Wavelength, delivering a beam that is invisible to the human eye. Ideal for non-invasive, discreet illumination in applications like Night Vision Systems.
  • Built with an Aspherical plastic collimating lens to maintain consistent spot quality across the working range. Rated for a high Mean Time To Failure (MTTF) of 10,000 hours at 25°C, ensuring sustained performance in automation environments.
  • Wavelength: 840~865 nm (NIR); Laser Output: 2.5~3.5 mW (Class 3R); Operating Voltage: 2.6~6 VDC. The Class 3R rating provides higher output power for demanding applications, requiring users to avoid direct eye exposure to the beam.
  • Features a rugged solid brass housing for excellent durability and thermal management. The integrated Auto-Power-Control (APC) driver circuit and internal protection allow for safe, consistent operation in demanding industrial settings.
  • Designed and manufactured in Taiwan by Quarton, this module supports specialized applications requiring reliable NIR light, including high-accuracy Gaze-Tracking Systems, Biometric Devices like Facial Recognition and Iris Scanners, LiDAR for distance measurement, and non-invasive Medical Diagnostics (Pulse Oximetry).

Why Choose the Quarton IR Dot Laser Module

The IR Dot Laser Module, 850nm, Class 3R, 2.5–3.5mW, VLM-850-01 LPA – With APC Driver, D10.5 x L18.4 mm, 2.6–6 VDC Operation Voltage, for <30m working distance, Laser Head, Made in Taiwan provides what serious diode lasers use demands: thoughtfully designed build, vlm-850-01 lpa, and practical use that lasts.

Best For

The Quarton IR Dot Laser Module is best suited for: non-invasive.

Quick Summary

The Quarton IR Dot Laser Module is a Diode Lasers product by Quarton. Brand: Quarton. Product Dimensions: 0.72"L x 0.41"W. Style: VLM-850-01 LPA - IR laser dot 850nm, Class 3R. Operation Mode: Automatic. Price: $69.28.

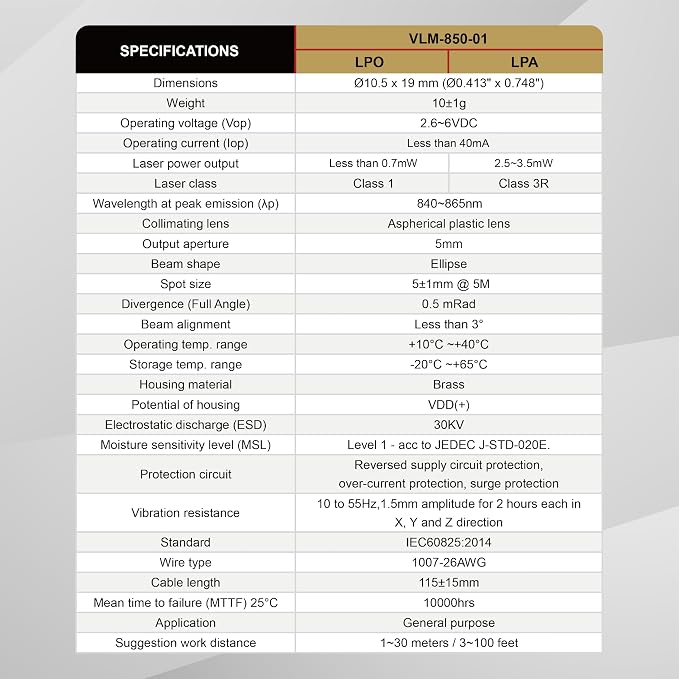

Product Specifications

Specification Details
Brand Quarton
Product Dimensions 0.72"L x 0.41"W
Style VLM-850-01 LPA - IR laser dot 850nm, Class 3R
Operation Mode Automatic
