Product Overview

The IR Dot Laser Module VLM-850-52 LPA, 850nm, Operating Voltage 3~6 VDC, Class 3R, 1~30 meters woking distance demonstrates reliable engineering through thoughtful design that supports everyday needs. Made with Stainless Steel, measuring 1.2"L x 0.33"W, weighing 4.2 Grams. Notable features include high-quality construction and module features, contributing to its practical character.

Key Features

  • High-Quality Construction: this module features stainless steel housing for exceptional durability and reliability in industrial environments. Offers a 10,000-hour lifespan for reliable performance in diverse environments.
  • Advanced Optical Design: Incorporates a 850 nm IR laser diode with an aspherical glass collimating lens, delivering a sharp, stable infrared laser spot and operating effectively across a wide temperature range. Beam Divergence (Full Angle): 0.5 mRad.

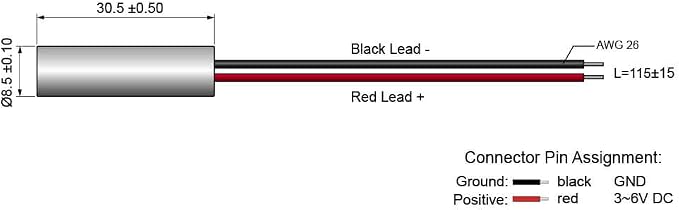

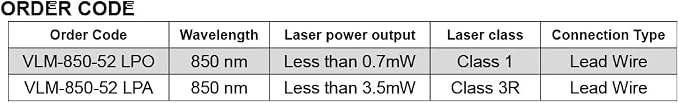

  • Integrated Safety & Performance Features: Equipped with an Auto-Power-Control (APC) driver circuit to ensure consistent and safe laser output. Operating Voltage: 3~6 VDC. Dimension: Ø8.5 x 30.5 mm (Ø0.334" x 1.2"). Laser Class: LPA - Class 3R / Class IIIa (less than 3.5 mW). Connection Type: Lead wire.
  • The laser spot size at 10 meters is 5±1 mm. Idea for alignment tasks: Positioning, Measuring, Pointing, Laser Sighting Device, Automotive Industry and Medical & Science.
  • Notice: Our laser modules are NOT laser pens and are NOT intended for general commercial or consumer use like standard laser pointer. They feature NO built-in switch or battery compartment and must be operated with an external power supply or battery holder.

Why Choose the Quarton IR Dot Laser Module VLM-850-52 LPA

The IR Dot Laser Module VLM-850-52 LPA, 850nm, Operating Voltage 3~6 VDC, Class 3R, 1~30 meters woking distance brings together versatile and well-made qualities, plus high-quality construction, to deliver long-term value in diode lasers settings.

Best For

The IR Dot Laser Module VLM-850-52 LPA, 850nm, Operating Voltage 3~6 VDC, Class 3R, 1~30 meters woking distance performs reliably in everyday needs, where its versatile design supports thoughtful design.

Quick Summary

The Quarton IR Dot Laser Module VLM-850-52 LPA is a Diode Lasers product by Quarton. Brand: Quarton. Material: Stainless Steel. Product Dimensions: 1.2"L x 0.33"W. Style: 850nm IR Laser, Class 3R - VLM-850-52 LPA. Item Weight: 4.2 Grams. Price: $150.15.

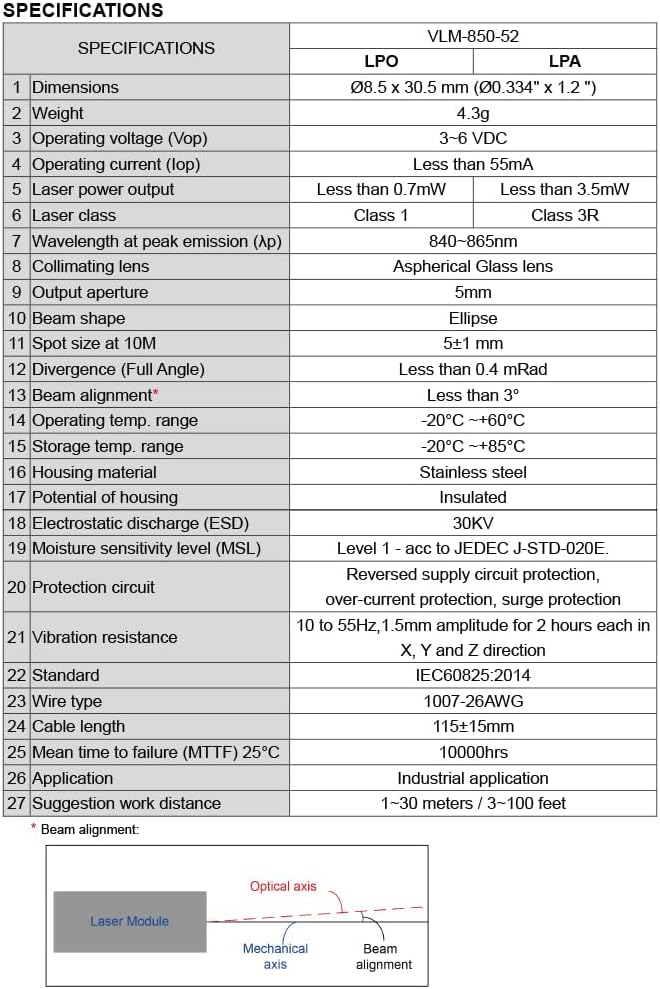

Product Specifications

Specification Details
Brand Quarton
Material Stainless Steel
Product Dimensions 1.2"L x 0.33"W
Style 850nm IR Laser, Class 3R - VLM-850-52 LPA
Item Weight 4.2 Grams
