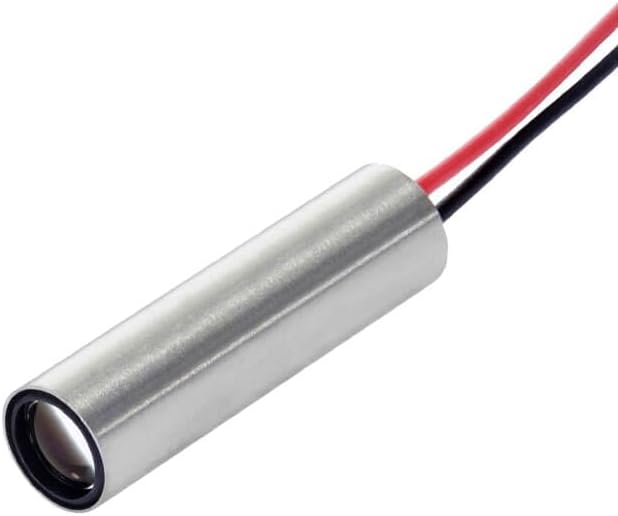

IR Dot Laser Module VLM-940-52 LPO, Operating Voltage 3~6 VDC, Class 1 eye-safe by Quarton

IR Dot Laser Module VLM-940-52 LPO, Operating Voltage 3~6 VDC, Class 1 eye-safe

$171.60
$171.60
Skip to product information
IR Dot Laser Module VLM-940-52 LPO, Operating Voltage 3~6 VDC, Class 1 eye-safe by Quarton
  • IR Dot Laser Module VLM-940-52 LPO, Operating Voltage 3~6 VDC, Class 1 eye-safe by Quarton
  • IR Dot Laser Module VLM-940-52 LPO, Operating Voltage 3~6 VDC, Class 1 eye-safe - Image 2
  • IR Dot Laser Module VLM-940-52 LPO, Operating Voltage 3~6 VDC, Class 1 eye-safe - Image 3
  • IR Dot Laser Module VLM-940-52 LPO, Operating Voltage 3~6 VDC, Class 1 eye-safe - Image 4
  • IR Dot Laser Module VLM-940-52 LPO, Operating Voltage 3~6 VDC, Class 1 eye-safe - Image 5
  • IR Dot Laser Module VLM-940-52 LPO, Operating Voltage 3~6 VDC, Class 1 eye-safe by Quarton
  • IR Dot Laser Module VLM-940-52 LPO, Operating Voltage 3~6 VDC, Class 1 eye-safe - Image 2
  • IR Dot Laser Module VLM-940-52 LPO, Operating Voltage 3~6 VDC, Class 1 eye-safe - Image 3
  • IR Dot Laser Module VLM-940-52 LPO, Operating Voltage 3~6 VDC, Class 1 eye-safe - Image 4
  • IR Dot Laser Module VLM-940-52 LPO, Operating Voltage 3~6 VDC, Class 1 eye-safe - Image 5
IR Dot Laser Module VLM-940-52 LPO, Operating Voltage 3~6 VDC, Class 1 eye-safe

IR Dot Laser Module VLM-940-52 LPO, Operating Voltage 3~6 VDC, Class 1 eye-safe

$171.60
$171.60

Product Overview

The IR Dot Laser Module VLM-940-52 LPO, 940nm, Operating Voltage 3~6 VDC, Class 1 eye-safe achieves satisfying experience through quality engineering, making it dependable for common scenarios. Key specs include brand: Quarton, style: 940nm IR Laser, Class 1 - VLM-940-52 LPO, unit count: 1.0 Count. Notable features include high-quality construction and module features, contributing to its reliable character.

Key Features

  • High-Quality Construction: this module features stainless steel housing for exceptional durability and reliability in industrial environments. Offers a 10,000-hour lifespan for reliable performance in diverse environments.
  • Advanced Optical Design: Incorporates a 940 nm IR laser diode with an aspherical glass collimating lens, delivering a sharp, stable infrared laser spot and operating effectively across a wide temperature range. Beam Divergence (Full Angle): 0.5 mRad.

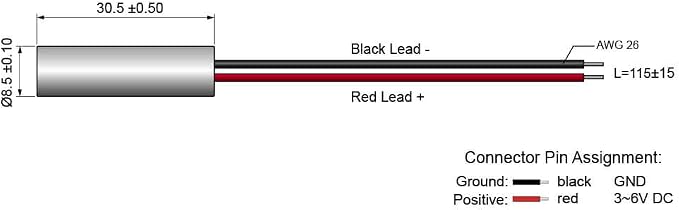

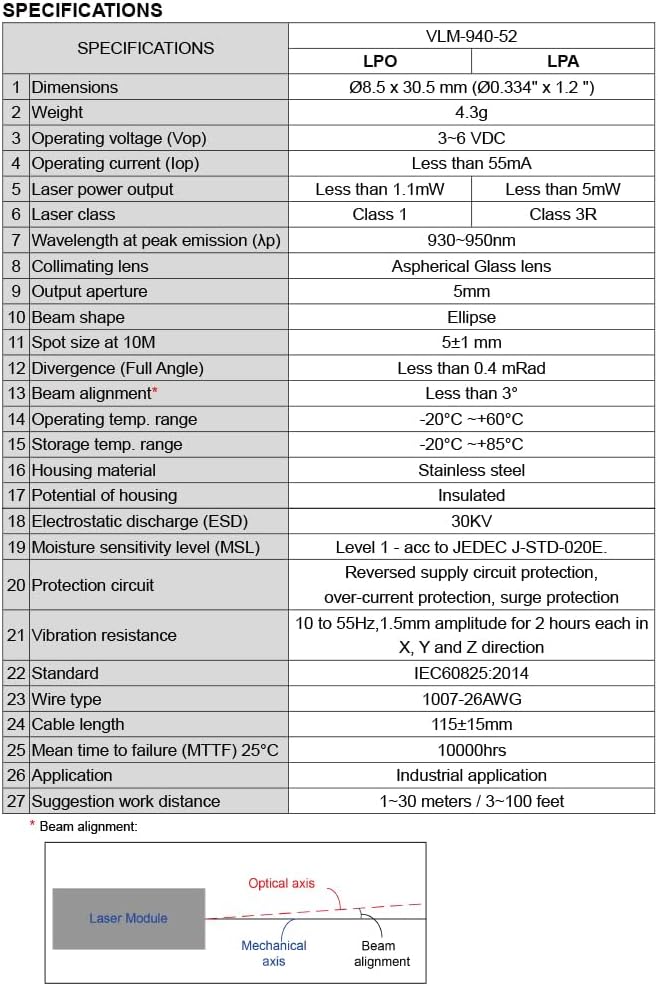

  • Integrated Safety & Performance Features: Equipped with an Auto-Power-Control (APC) driver circuit to ensure consistent and safe laser output. Operating Voltage: 3~6 VDC. Dimension: Ø8.5 x 30.5 mm (Ø0.334" x 1.2"). Laser Class: LPO - Class 1 (less than 1.1 mW). Connection Type: Lead wire.
  • The laser spot size at 10 meters is 5±1 mm. Idea for alignment tasks: Positioning, Measuring, Pointing, Laser Sighting Device, Automotive Industry and Medical & Science.
  • Notice: Our laser modules are NOT laser pens and are NOT intended for general commercial or consumer use like standard laser pointer. They feature NO built-in switch or battery compartment and must be operated with an external power supply or battery holder.

Why Choose the Quarton IR Dot Laser Module VLM-940-52 LPO

The IR Dot Laser Module VLM-940-52 LPO, 940nm, Operating Voltage 3~6 VDC, Class 1 eye-safe answers the question "why this one?" with thoughtfully designed engineering, high-quality construction, and proven practical use.

Best For

The IR Dot Laser Module VLM-940-52 LPO, 940nm, Operating Voltage 3~6 VDC, Class 1 eye-safe fits common scenarios scenarios well, providing satisfying experience and thoughtfully designed reliability.

Quick Summary

The Quarton IR Dot Laser Module VLM-940-52 LPO is a Diode Lasers product by Quarton. Brand: Quarton. Style: 940nm IR Laser, Class 1 - VLM-940-52 LPO. Unit Count: 1.0 Count. Price: $171.6.

Product Specifications

Specification Details
Brand Quarton
Style 940nm IR Laser, Class 1 - VLM-940-52 LPO
Unit Count 1.0 Count
