Product Overview
Where daily routines demands consistency, the Red Circular Dot Laser Module with TTL Modulation, 650nm, Class 2, 10~36VDC, 0~1 meter working distance, VLM-650-71 LPT - Industrial Alignment Laser for Medical, Laboratory, Machine Vision delivers reliable performance backed by thoughtfully designed build. Featuring Glass, Stainless Steel, available in Silver. Notable features include vlm-650-71 lpt and lpt produces, contributing to its versatile character.
Key Features
- VLM-650-71 LPT produces an extremely small circular red laser dot with TTL modulation function, ideal for precision alignment within 1 meter. Provides a precision laser spot for applications such as tool path indication, component positioning verification, optical sensing alignment, calibration reference in inspection systems.

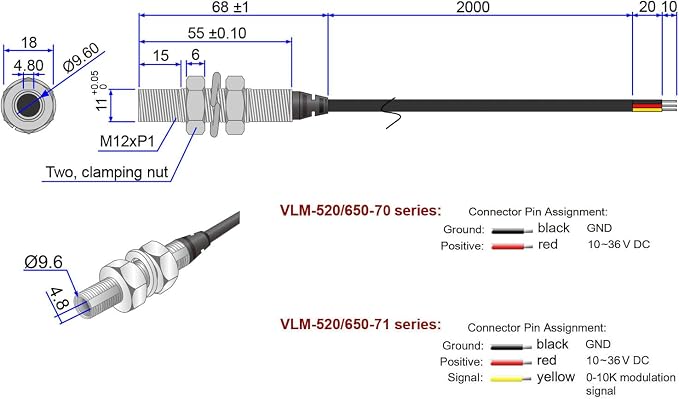

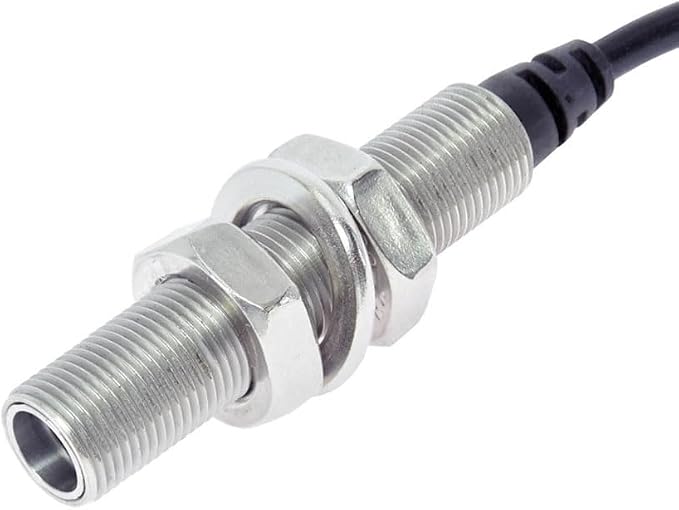

- Constructed with a stainless steel housing (M12 × 68 mm) and a high-quality aspherical glass lens, ensuring stable beam profile, optical clarity, and long-term reliability in continuous-use industrial environments.

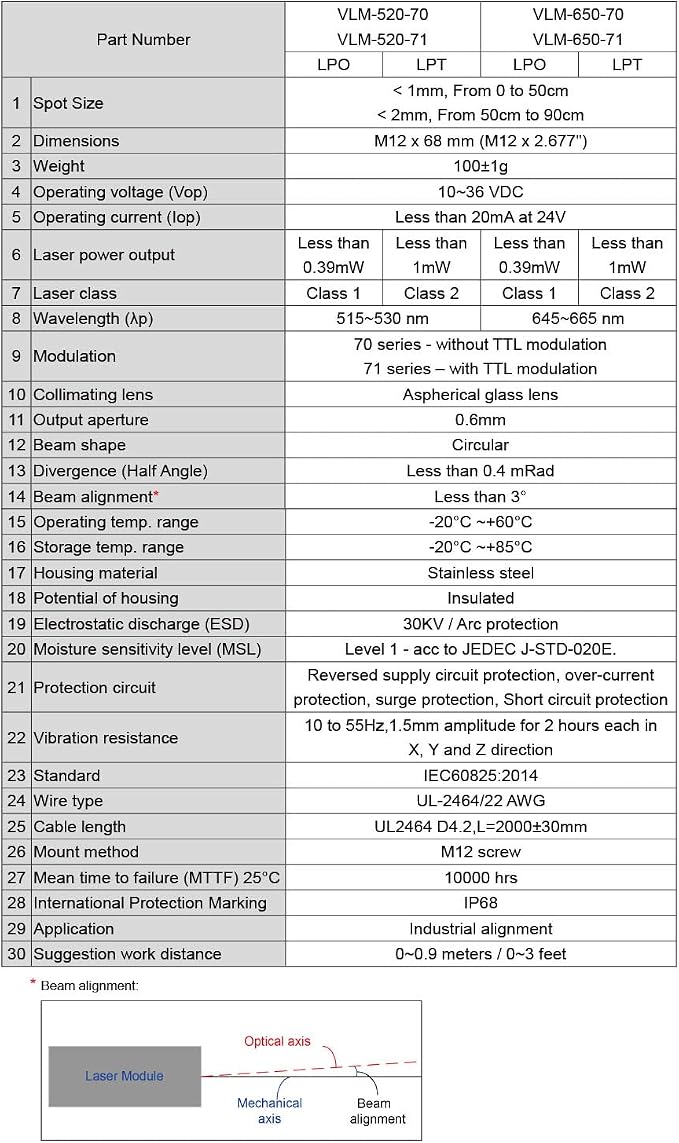

- Class 2 / Class II laser output (<1 mW). Operating voltage: 10~36 VDC. Beam divergence <0.4 mRad provides a concentrated dot with consistent spot size within 1 meter. Since the laser dot is very small and focused within 1 meter, it will appear very bright.
- Engineered for long-term reliability, the 650 nm module is tested for vibration resistance (10~55 Hz, 1.5 mm amplitude) and built with an insulated housing to ensure electrical safety. It operates consistently from -20°C to +60°C, making it ideal for demanding environments such as manufacturing automation, inspection stations, CNC systems and industrial tooling applications.
- Notice: Our laser modules are NOT laser pens and are NOT intended for general commercial or consumer use like standard laser pointer. They feature NO built-in switch or battery compartment and must be operated with an external power supply or battery holder.
Why Choose the Quarton Red Circular Dot Laser Module with TTL Modulation
The Red Circular Dot Laser Module with TTL Modulation, 650nm, Class 2, 10~36VDC, 0~1 meter working distance, VLM-650-71 LPT - Industrial Alignment Laser for Medical, Laboratory, Machine Vision represents a value-driven take on diode lasers, with vlm-650-71 lpt that supports thoughtful design consistently.
Best For
The Quarton Red Circular Dot Laser Module with TTL Modulation is best suited for: precision alignment within 1 meter, demanding environments such as manufacturing automation.
Quick Summary
The Quarton Red Circular Dot Laser Module with TTL Modulation is a Diode Lasers product by Quarton. Brand: Quarton. Material: Glass, Stainless Steel. Color: Silver. Style: VLM-650-71 LPT - Red laser, Class 2, with TTL. Operation Mode: Automatic. Price: $231.
Product Specifications
| Specification | Details |
|---|---|
| Brand | Quarton |
| Material | Glass, Stainless Steel |
| Color | Silver |
| Style | VLM-650-71 LPT - Red laser, Class 2, with TTL |
| Operation Mode | Automatic |
