Product Overview

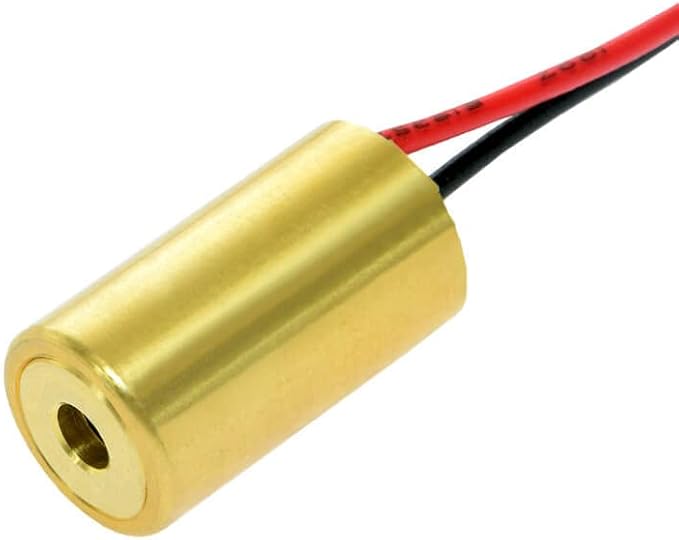

Offering everyday convenience in a durable package, the Red Dot Laser Module, 650nm, Class 3R, Less Than 5mW, with APC Driver, 2.6~6V Operation Voltage, 30 meters working distance, D10.5x19mm, VLM-650-01 LPA, Laser Head, Made in Taiwan fits well into practical situations. Featuring Brass, measuring 0.75"L x 0.41"W, available in Red. Notable features include integrated industrial and industrial design, contributing to its thoughtfully designed character.

Key Features

  • Integrated Industrial Design for Reliable Performance: This 650nm red dot laser module features a precision-engineered structure that integrates an aspherical plastic collimating lens, red laser diode, and APC (Auto-Power-Control) driver circuit inside a durable solid brass housing. The laser module delivers stable and Class 3R / Class IIIa laser output (less than 5mW), suitable for continuous industrial use.
  • Wide 2.6~6VDC Input Range for Easy Integration: Designed for simple electrical integration, the VLM-650-01 LPA operates across a broad 2.6~6VDC input range, making it ideal for OEM devices, automation equipment, measuring tools, alignment systems, and custom electronic applications.
  • Versatile Red Laser for Cost-Efficient Industrial Applications: The 650nm red beam offers dependable visibility in indoor or low-light environments. Ideal for positioning, measuring, pointing, laser sighting, and general alignment tasks across woodworking, metal processing, textile machinery, food equipment, automotive systems, and scientific instruments.
  • Precise Beam Optics with Stable Output: Featuring a 0.5 mRad full-angle beam divergence and an elliptical beam profile (approx. 5±1mm @ 5M), this module provides concentrated, reliable alignment for mid range industrial applications. Mean Time to Failure (MTTF): 10,000 hours at 25°C (77°F).

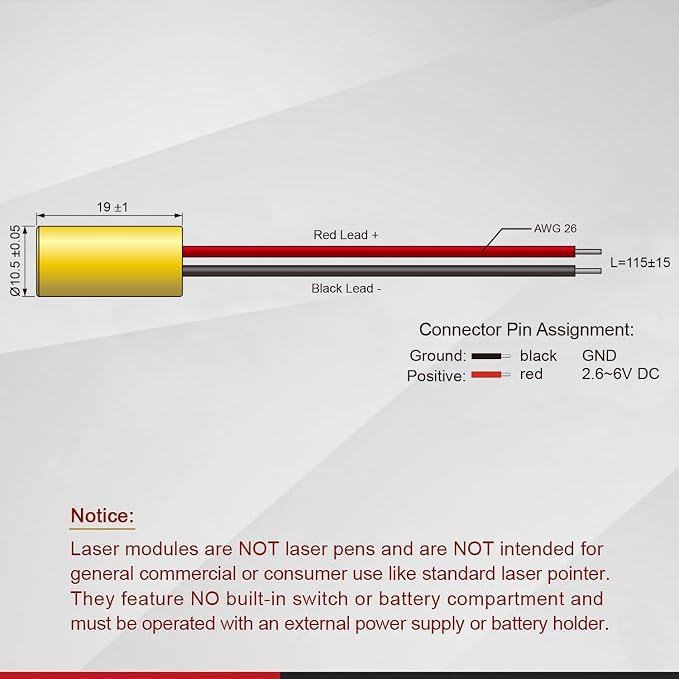

  • Durable, Industrial, and Ready for OEM Integration: With a compact D10.5 × L19 mm (D0.413 × L0.748 in) form factor, the module combines optics, diode, and APC circuitry into a single package. The patented solid-brass housing enhances vibration resistance and heat dissipation. Connection type: lead wire (external power source required).

Why Choose the Quarton Red Dot Laser Module

The Red Dot Laser Module, 650nm, Class 3R, Less Than 5mW, with APC Driver, 2.6~6V Operation Voltage, 30 meters working distance, D10.5x19mm, VLM-650-01 LPA, Laser Head, Made in Taiwan answers the question "why this one?" with well-made engineering, integrated industrial, and proven satisfying experience.

Best For

The Quarton Red Dot Laser Module is best suited for: continuous industrial use, simple electrical integration, positioning.

Quick Summary

The Quarton Red Dot Laser Module is a Diode Lasers product by Quarton. Brand: Quarton. Material: Brass. Color: Red. Product Dimensions: 0.75"L x 0.41"W. Style: VLM-650-01 LPA - Red laser dot, Class 3R. Price: $36.28.

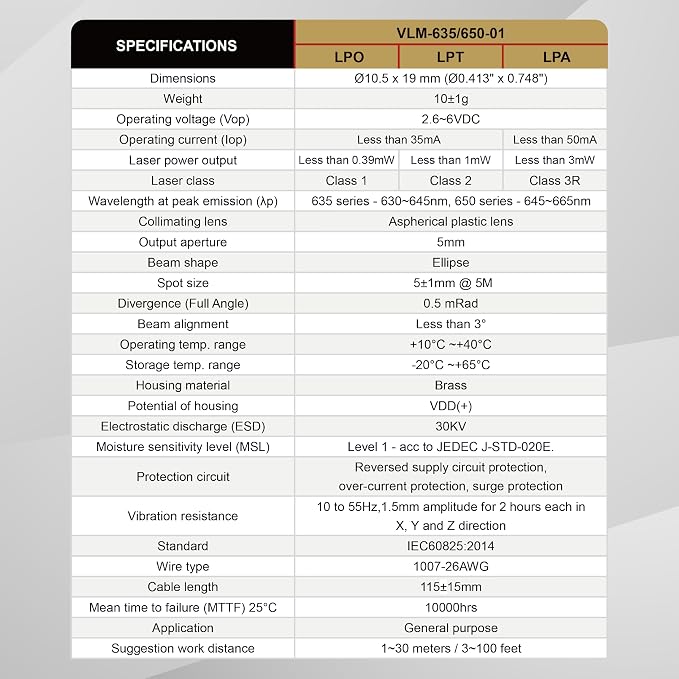

Product Specifications

Specification Details
Brand Quarton
Material Brass
Color Red
Product Dimensions 0.75"L x 0.41"W
Style VLM-650-01 LPA - Red laser dot, Class 3R
