Product Overview
Step-by-step, the Usr-Tcp232-410S RS232 / RS485 Serial to Ethernet Adapter/IP Device Server Ethernet Converter Support DHCP/DNS (1) addresses household use needs through user-tested engineering and practical use. weighing 0.2 Grams, available in Server +Terminal part. Notable features include dual serial and serial device, contributing to its time-tested character.
Key Features

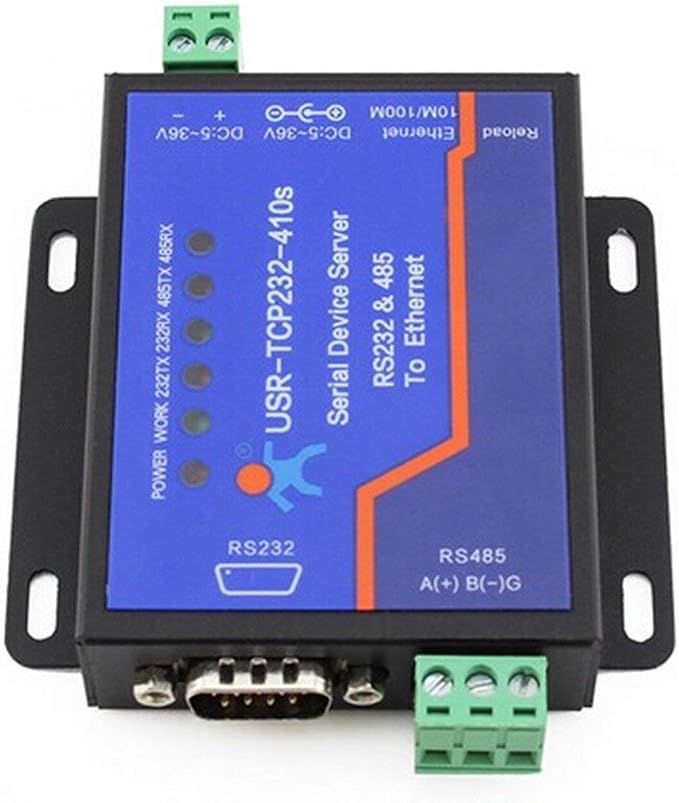

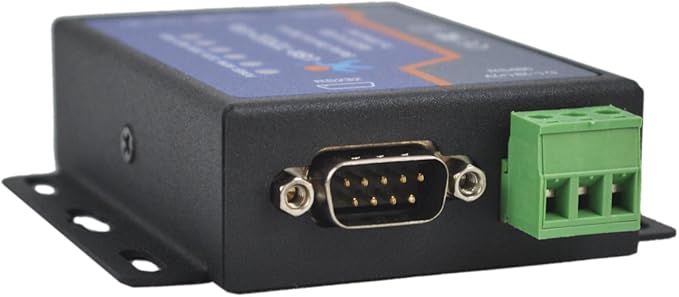

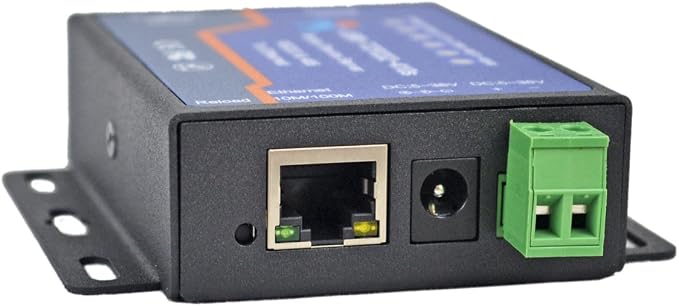

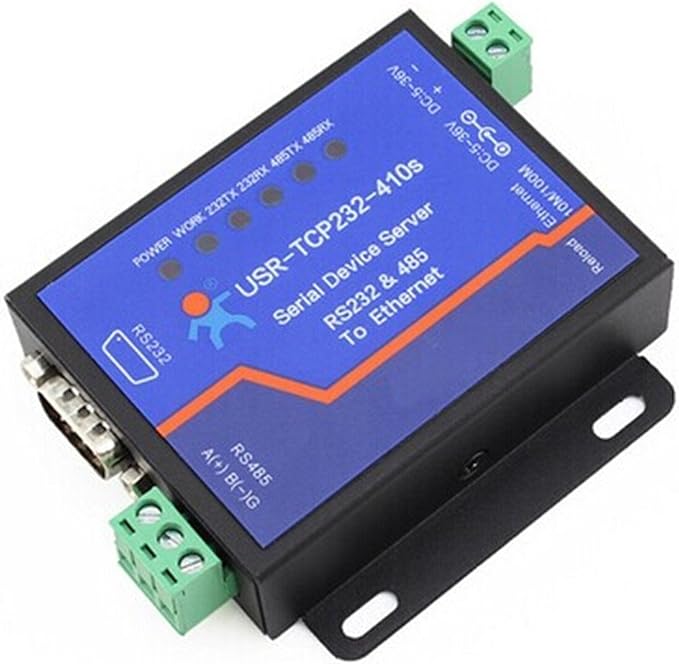

- Dual Serial Device Server: Cpu: Cort ex-M4 120Mhz, Serial RS485 & RS232 to Ethernet Server, 2 Serial Ports: 1 Port is RS232, 1 Port is RS485, 1 RJ45 Ethernet Port. Support RS232 & RS485 Working at The Same Time.
- Configure Via Web Browser or Virtual Com Software Interface; Working Temperature: -40 ~ 85°C, Power Consumption: < 1W.
- USR-TCP232-410s can collected data in Modbus RTU, Modbus TCP protocol and reporting data to IoT cloud in JSON format using MQTT or TCP/UDP/HTTP protocol. It supports up to 128 data points, and can decode and compute the collected data to reduce server’s pressure.
- Modbus Gateway: Connect to PLC, SCADA system or user’s private server to achieve local or remote motoring.Modbus RTU to Modbus TCP and Multi-Host Modbus Polling.
- Data Dransmission Encryption: Supports SSL/TLS encryption in TCP client, HTTP client and MQTT operation modes. Supports two-way certificates authentication.
Why Choose the PUSR Usr-Tcp232-410S RS232 / RS485 Serial to Ethernet Adapter/IP Device Server Ethernet Converter Support DHCP/DNS (1)
With dual serial and configure via, the Usr-Tcp232-410S RS232 / RS485 Serial to Ethernet Adapter/IP Device Server Ethernet Converter Support DHCP/DNS (1) achieves everyday convenience that others in the serial adapters category often miss.
Best For
When household use is the priority, the Usr-Tcp232-410S RS232 / RS485 Serial to Ethernet Adapter/IP Device Server Ethernet Converter Support DHCP/DNS (1) stands out for reliable engineering and practical use.
Quick Summary
The PUSR Usr-Tcp232-410S RS232 / RS485 Serial to Ethernet Adapter/IP Device Server Ethernet Converter Support DHCP/DNS (1) is a Serial Adapters product by PUSR. Brand: PUSR. Hardware Interface: Ethernet. Color: Server +Terminal part. Compatible Devices: Desktop. Data Link Protocol: Ethernet. Price: $75.57.
Product Specifications
| Specification | Details |
|---|---|
| Brand | PUSR |
| Hardware Interface | Ethernet |
| Color | Server +Terminal part |
| Compatible Devices | Desktop |
| Data Link Protocol | Ethernet |
| Data Transfer Rate | 100 Megabits Per Second |
| Item Weight | 0.2 Grams |
| Smart Home Compatibility | Not Smart Home Compatible |
| Unit Count | 1.0 Count |
